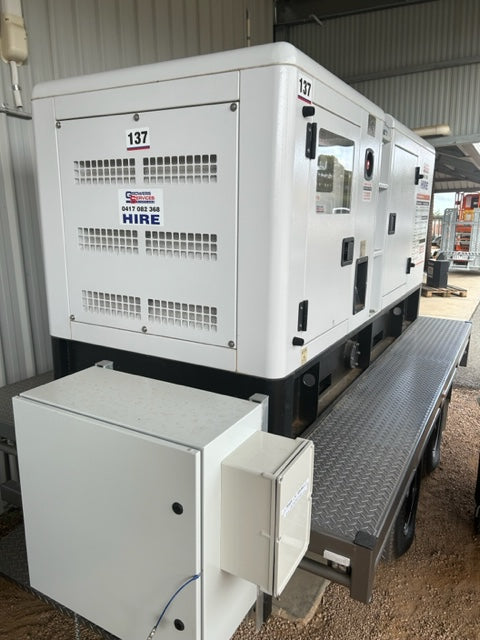

For Hire 3 Phase Generator 63kva 52kw, 415v
Must be hard-wired by a qualified electrician, 120lt diesel fuel tank, weight 1600kg, 74db @ 1 metre, 64db @ 7 metres.
Specifications
ENGINE SPECIFICATIONS Engine Model Cummins 4BTA3.9G2 Engine Speed 1500 rpm Cylinders 4TA Cubic Capacity 3.9 L Bore/Stroke 102 x 119 mm Compression Ratio 17.3 : 1 Aspiration Turbocharged Starter Voltage 24 V Flywheel (Max. Continuous Power) 60 kW Combustion Air Flow 4.2 m3/min Cooling Airflow 198 m3/min Cooling System Radiator Cooled Heat Rejection to Cooling System 56 kW Exhaust Gas Flow 8 m3/min Exhaust Gas Temperature 550 °C Fuel Type Diesel Fuel Tank Capacity 120 L Fuel Consumption (Continuous) 11.7 L/h Fuel Consumption (Standby) 13 L/h ALTERNATOR SPECIFICATIONS
Alternator Model Crossley SLG Series Electric Power Three Phase Active Power 63kVA at 0.8 pf (Standby) Power 52 kW Electric Potential 415 V Frequency 50 Hz Powered Note: Standby reference conditions 27°C (80°F) air inlet temperature 152.4 m (500ft) ASL. All engine performance data is based on the above-mentioned maximum continuous ratings. Fuel consumption data at full load with diesel fuel with a specific gravity of 0.85 conforming to BS29869:1988, Class A2.
These ratings are applicable for supplying continuous electrical power at variable loads in case of a utility power failure. No overload is permitted on these ratings.
GENERATOR SPECIFICATIONS Dimensions (L x W x H) 2600 x 1100 x 1290 mm Weight 1600 kg
$350.00 inc GST Per Day
$300.00 inc GST Per Day for 2 or more days
$1500.00 inc GST Per Week.
